Ice Box Conversion Kit - 3 Plate (LT201-F )

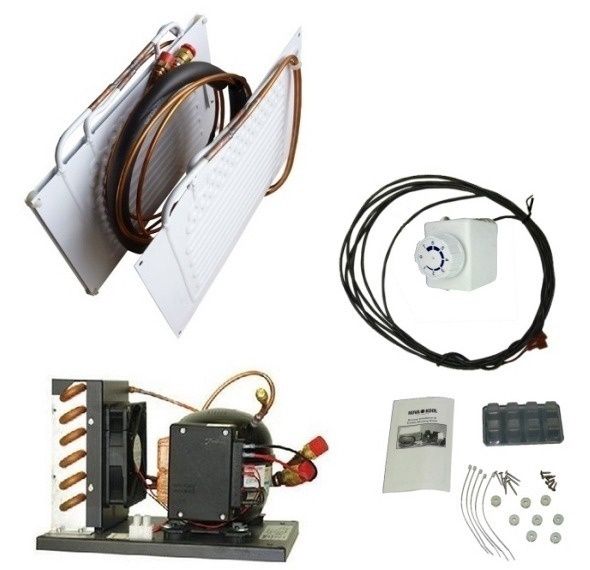

The Nova Kool LT201 F model is supplied with an efficient Danfoss BD35 Condensing unit with compressor, and an efficient three plate evaporator (cold plate) design.

The LT201-F model comes with three 16" x 10" Cold Plates, two of which are attached together with the third plate that can be placed up to 18" away. The plates are rated as being 528 sq. inches in surface area.

Suits refrigerator applications up to 14 cf (396 l) or freezer applications up to 7 cf (198 l) for an icebox with 4" of foam insulation. The LT201-F is recommended for the "spill over" design; where the cold box is divided, and one part of the box becomes part freezer, and the other section a cooler.

The sizes are based on a well built, top opening box with;

• 4 Inches of foam insulation.
• Ambient temperature 90°F (32°C).
• Target Refrigerator temperature at 39°F (4°C)
• Target Freezer temperature at 15°F (-10°C).

Features:

• Self sealing couplings. (unit is precharged with refrigerant)
• Evaporator supplied with 12 ft line sets.
• Efficient air cooled condenser, will provide years of simple reliable service in the tropics.
• Condenser is sized specifically to ensure capacity in the hottest of climates
• Variable speed compressor. (adjusted by changing the resistance in control circuit)
• 18 GA powder coated steel with a compact foot print.
• Backed with Nova*Kool's Easy 2 Year Warranty Program on all components.
• Environmentally sound R134a refrigerant.
• Simple, efficient and reliable rollbond plate evaporators. Can in many cases be bent to conform to your requirements. There are three evaporator plates in total, divided in two sections. Sections are 16" x 11 3/8" and can be spaced a maximum of 18" apart.
• Compressor designed to run continuously on a 30 degree heal.
• Low amperage fan.
• Compressor Draw: 12 VDC - 4.2A / 24 VDC - 2.1A
• Voltage: 12 & 24V DC standard.
