Ice Box Conversion Kit ( LT201-RT4)

The Nova Kool LT201-RT4 Freezer Box model includes an efficient Danfoss BD series compressor and has a 336 square inch plate surface area, formed into a box freezer, which is normally mounted vertically, like a bucket in the bottom of the cold box.

The formed freezer box is 10.5"W x 6.5"H x 11.5" D, offering 0.45 cubic feet of freezer space. It can be used in a cold box, up to a maximum of 10 cubic feet (with 4" of insulation), that requires a small freezer compartment in the same space.

The RT4's small footprint allows for easy mounting and is thermostat controlled for a wide range of settings. Construction is a powder-coated galvanized base that is corrosion-resistant and easy to clean.

Fan cooled condenser increases efficiency while the DC compressor is quiet, vibration-free, safe and dependable.

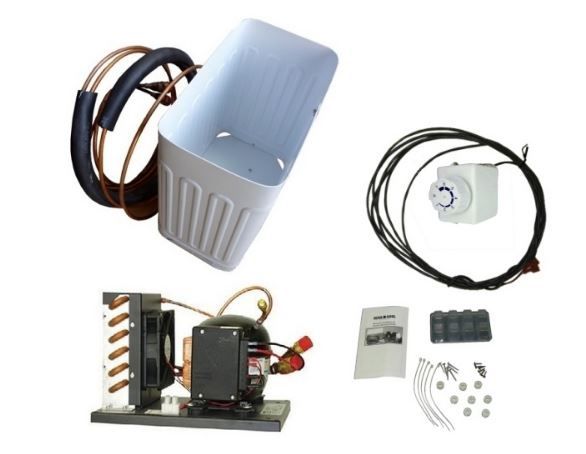

The pure DC unit minimizes RF noise / Electrolysis and is designed to operate at a constant angle of 30 degrees. The unit is shipped with everything you need to complete the installation.

• Self-sealing couplings. (unit is precharged with refrigerant)
• Evaporator supplied with a 12' line set.
• An efficient air-cooled condenser will provide years of simple reliable service in the tropics.
• The condenser is sized specifically to ensure capacity in the hottest climates. Variable speed compressor. (adjusted by changing the resistance in the control circuit)
• 18 GA powder-coated steel with a compact footprint.
• Backed with Nova Kool's* Easy 2 Year Warranty Program on all components.
• Environmentally sound 134a refrigerant.

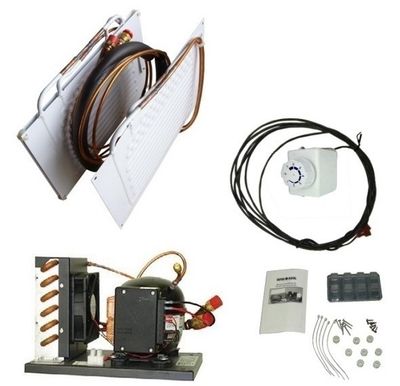

• Simple, efficient and reliable roll bond plate evaporators. Can in many cases be bent to conform to your requirements.
• Compressor designed to run continuously on a 30-degree heal.
• Low battery protection to help prevent full discharge of batteries.
• Low amperage fan.
• Compressor Draw: 12 VDC - 4.2A / 24 VDC - 2.1A
• Voltage: 12 & 24 VDC standard.
