Coolmatic Compact Cooling Kit (CS-NC-15)

From Passive Cooler to Active Compressor Refrigerator. Ideal for converting an existing, passive insulated cooling area into a full, compressor-powered refrigerator.

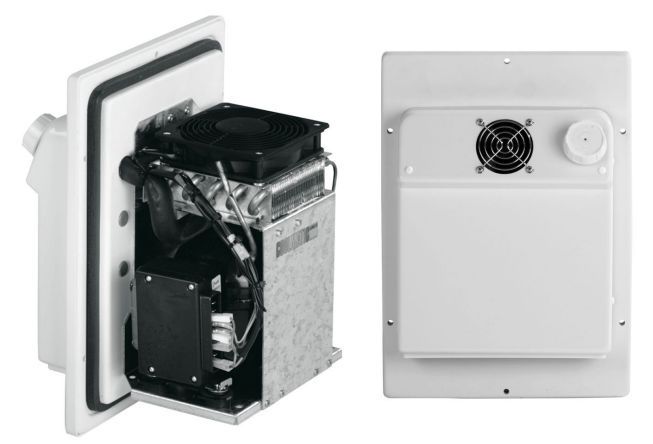

The CS-NC-15 compact cooling kit consists of the high-performance air-circulating VD-15 fin evaporator and the power-regulated CoolMatic cooling unit. These two units in one kit offer a perfect match of rapid-chill capability and high cooling performance. The tried and tested Danfoss BD35F compressor ensures economical and super quiet operation. This cooling unit is specifically designed for chest coolers with capacities up to 2.12 cu. ft. (60 liters) of deep freeze space, to 8.8 cu. ft. (249 liters) of normal refrigeration capacity. When used on boats, the cooling unit can withstand a constant heeling of 30°.

Installation is quick and easy. All that's required is a hole cut to match the size of the cooling kit. The CS-NC-15 is then simply screwed from inside to the mounting plate.

• Ideal for converting an existing, passive, insulated cooling area into a full, compressor-powered refrigerator
• Up to 8.8 cubic ft. (240 liters) of refrigeration
• Rapid-chill capability with forced air circulation operation
• Energy-efficient Secop compressor
• Vertical layout or wall mount
• Integrated low-voltage protection
• Continuously variable thermostat
• Integrated rubber seal ensures that the coolbox is securely sealed
• Coolant lines are fully assembled and connected at the factory
• Environmentally safe R-134A refrigerant

Specifications:

• Refrigeration Capacity: 8.8 cubic ft. (249 liters)
• Freezer Capacity: 2.12 cubic ft. (60 liters)
• Dimensions: Height 14.3 in. (363mm) x Width 10.6 in. (258mm) x O.A. Depth 8.9 in. (227mm)
• Cut Out: 12.20 in. (310mm) H x 8.45 in. (215mm) W x 6.5 in. (
• Voltage: 12/24 volts DC
• Weight: 14 lbs. (6.35 kg.)
• Draw: Approximately 60 Watts, 4A @ 12V DC, 2A @ 24V DC
• Warranty: 1 Year
