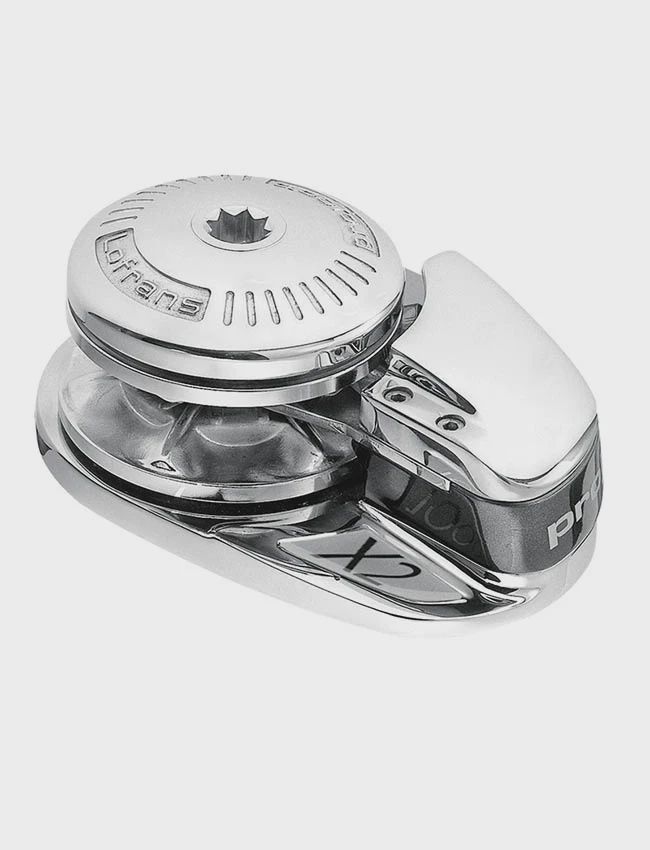

Windlass Project X2 Capstan 1500W 5/16" HT (LO-PX2AC15125)
$3 399.00
Usually ships within 7-10 days
Out of stock, available for pre-order
Product Details
Brand: Lofrans
- Anodized Aluminum base and drum
- Special watertight stainless steel ball bearing in the base
- With drum or Low profile
- Indepent Gypsy and drum operation
- Rope and chain combinaton Gypsy
- Manual chain release
- Manual override available for chromed bronze models only (800W chrome variant does not have the manual override function)
- Rope chain management by the spring loaded arm
- Chain counter magnet pre-installed as standard
- IP67 rated heavy duty electric motor
- Anodised marine aluminium gearbox
- Control Box included in package
Standard Equipment:
- Dual direction solenoid pack
- Handle
- Gypsy for chain
- CD / Instruction manual
| Item Code | Item Description | Circuit Breaker (available separately) | Construction | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 600057 | WINDLASS V. X2 ALU G+D 1500W/12V 8-5/16"BBB-5/16"HT | 187333 | Aluminium |
| Gipsy For Chain | Gipsy For Rope | Line Speed at Working Load (m/min) | Max Line Speed | Maximum Pull | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 8 mm, ISO 4565 DIN 766 | 14 mm, 3-strand | 17 m/min | 40 m/min | 1200 kg |
| Motor size | Net Weight | Power Supply | Type | Amps at Working Load (A) | Working load (kg) |
|---|---|---|---|---|---|
| 1500 W | 25 kg | 12 V | With Drum | 150 | 165 |
R2026-2
