Top Flange Adapter S3 or S3U Threaded Sensors ( FL-2WE )

FL-2WE Mounting Adapter Kit

The FL-2WE Top Adapter Kit is a versatile solution designed to bridge the gap between different mounting standards. This kit features a female 1.25 inch BSP-threaded central hole, specifically designed to accept S3 or S3U series threaded sensors. It is an essential component when replacing an existing SAE 5-hole flanged sensor with a newer BSP-threaded model, or when performing a new installation in a tank that already features a standard 5-hole mount.

Constructed from durable nylon, the FL-2WE adapter flange includes two distinct bolt-hole patterns to ensure maximum compatibility. The inner pattern matches the SAE 5-hole standard, while the outer pattern matches the European standard 5-hole pattern. The kit includes a nitrile rubber gasket with the same dual-pattern holes to provide a leak-proof seal. This adapter is safe for use on plastic, metal, and fiberglass tanks.

Installation and System Security

For a complete installation of a threaded sensor into a standard SAE tank opening, the FL-2WE Top Adapter is used to align with the existing threaded holes in the tank. For entirely new installations where no mounting holes exist, an under-ring adapter is typically required to provide the necessary threaded holes on the underside of the tank material.

For tanks with thin top surfaces, it is recommended to use the FL-2 Flange Adapter in conjunction with the FLS-U Under-Ring Adapter. This combination reinforces the mounting area by sandwiching the tank material between the flange and the ring, ensuring a secure and leak-resistant foundation for the sensor.

KUS liquid level senders provide a highly accurate and durable solution for monitoring fuel, water, and oil levels in marine, RV, and industrial tanks. These sensors utilize advanced reed switch technology, featuring a magnetic float that moves vertically along a stainless steel shaft. This design offers superior stability over traditional swing-arm senders, especially in turbulent conditions where fluid movement typically causes gauge fluctuations.

Sensor Model Overview

The KUS product line is categorized by mounting style to ensure compatibility with a wide variety of tank configurations:

• SSS and SSL Flange Models: These are the most common configurations, designed to mount using the industry-standard SAE 5-hole pattern. They typically seal to the top of the tank using a gasket and five mounting screws.

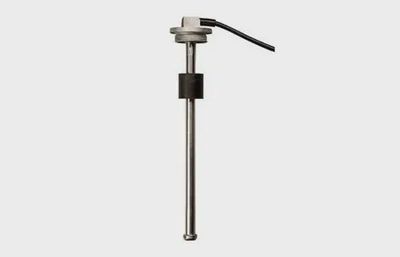

• S3 and S3U Threaded Models: These sensors feature a 1.25 inch BSP threaded head, allowing them to be screwed directly into a matching threaded tank port.

• S5 and S5U Threaded Models: These units are designed with a 1.5 inch NPT threaded mount, frequently found in larger industrial or specialized fuel tank applications.
