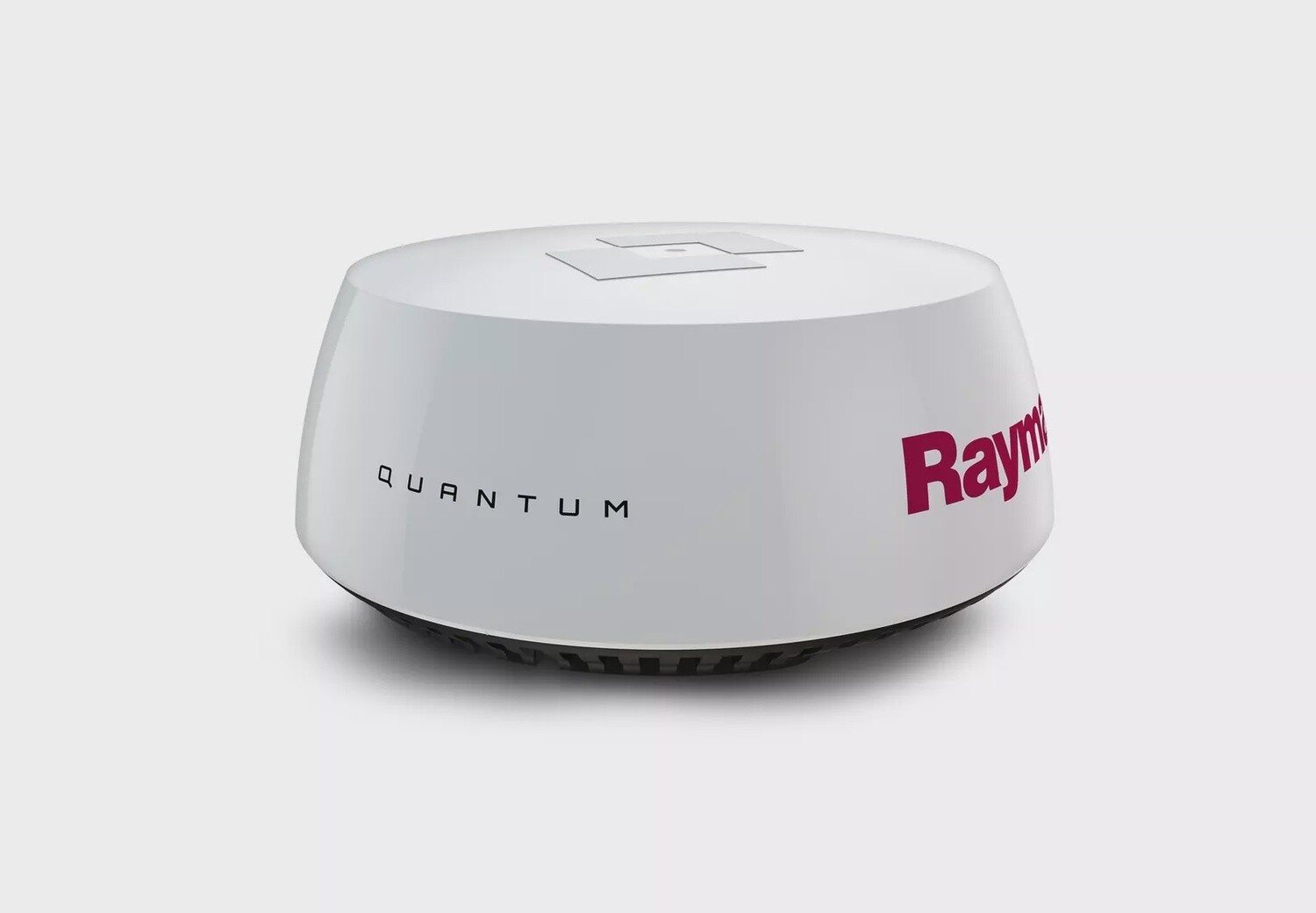

Quantum Q24C 18" CHIRP Pulse Compression Radar Dome (T70266)
$2 834.99
Special Order
Out of stock, available for pre-order
Product Details
UPC: 723193813461
Brand: Raymarine
Quantum Q24C 18" CHIRP Pulse Compression radar dome with 15m power and data cables.
KEY FEATURES
- Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
- CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges
- Broad usage applications, Quantum is perfect for Sailboats, RIBs, and smaller powerboats
- Simplified installation and can utilize existing cables (with an adapter) if being used as an upgrade
| GENERAL SPECIFICATIONS | |
|---|---|
| Dimensions: Diameter | Height |
541.0 mm | 209.5 mm |
| Weight |
5.6 kg |
| Supply voltage |
Either 12 V dc or 24 V dc nominal |
| Operating voltage range |
Minimum: 10.8 V dc | Maximum: 31.2 V dc |
| Power Consumption |
Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W |
| Waterproofing |
IPX6 |
| Operating temperature range |
-10°C to +55°C |
| Storage temperature range |
-25°C to +70°C |
| Additional storage conditions |
Store upright; do not block vents on underside |
| Humidity |
Up to 95% at 35°C |
| Maximum wind speed |
100 kts |
| Range scales |
1/16, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, and 24 nautical miles |
