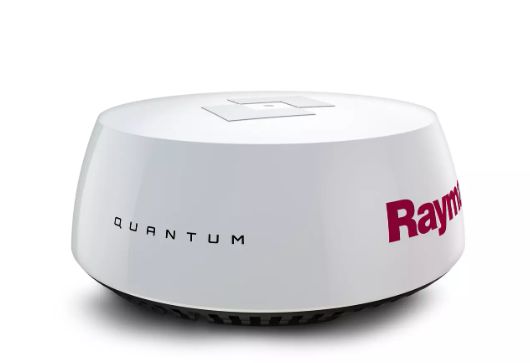

Quantum 2 Q24D Doppler 18" Radar (T70416)
$3 118.49
Usually ships within 1-2 days
Out of stock, available for pre-order
Product Details
UPC: 723193823118
Brand: Raymarine
Doppler CHIRP Pulse Compression Radome WIFI/Ethernet with 10m power and data cables white
QUANTUM 2 WITH DOPPLER COLLISION AVOIDANCE TECHNOLOGY
Keep inexperienced boaters and hidden dangers at bay even in the most congested waterways.
Quantum™ 2 with Doppler collision avoidance technology makes it easy to discern potentially dangerous targets when navigating in high-traffic areas. Using advanced Doppler processing, Quantum 2 instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound.

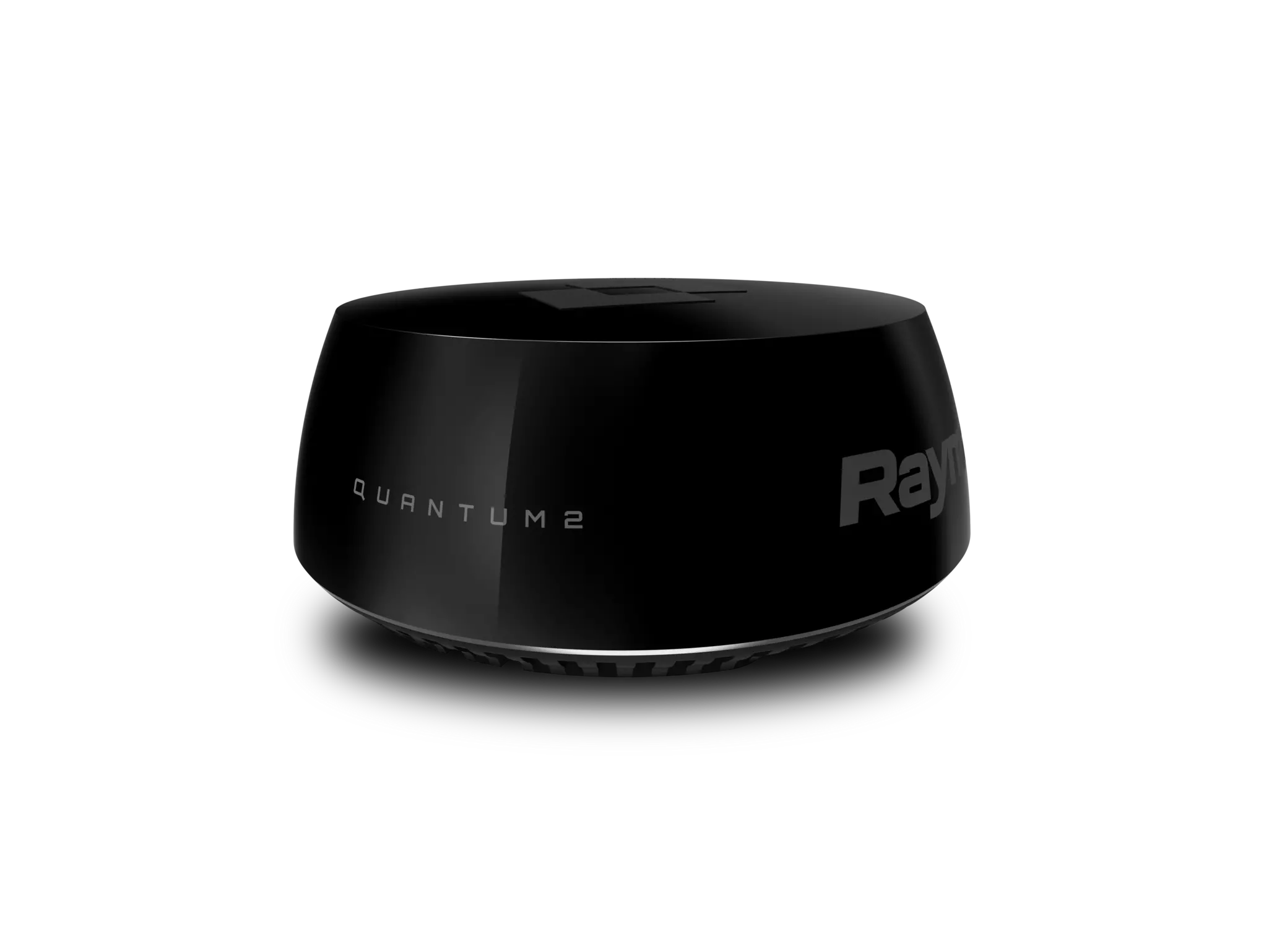

QUANTUM 2 BLACK: STAY AWARE WITH STYLE
Offering confident radar navigation and style, Quantum 2 Black adds a level of sophistication to any vessel.
Quantum 2 Black offers the same performance and safety-enhancing Doppler target tracking as the original white Quantum 2 in a premium black housing.
KEY FEATURES
- Quantum 2 Doppler Radar, perfect for sailboats, RIBs, and smaller powerboats
- Available as a standalone scanner with no power or data cable or with 10m and 15m cabling
- Provides excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
- Simplified, fast installation and can utilize existing Raymarine scanner fixing points
- Once installed, Quantum 2 starts right up and immediately provides awareness
SUPERIOR COLLISION AVOIDANCE
Raymarine Quantum 2 Doppler target processing identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.
Quantum 2 MARPA mode provides an effective means of dangerous target tracking and is the same technology trusted by the United States Coast Guard.
| GENERAL SPECIFICATIONS | |
|---|---|
| Dimensions: Diameter | Height |
541.0 mm | 209.5 mm |
| Weight |
5.6 kg |
| Supply voltage |
Either 12 V dc or 24 V dc nominal Minimum: 10.8 V dc | Maximum: 31.2 V dc |
| Operating voltage range |
Minimum: 10.8 V dc | Maximum: 31.2 V dc |
| Power Consumption |
Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W |
| Waterproofing |
IPX6 |
| Operating temperature range |
-10°C to +55°C |
| Storage temperature range |
-25°C to +70°C |
| Additional storage conditions |
Store upright; do not block vents on underside |
| Humidity |
Up to 95% at 35°C |
| Maximum wind speed |
100 kts |
