MasterGuard Installation Kit 501 (11500100)

MasterGuard 500 Series Installation Kit for Engines with 4.25" or 4.75" Gearcases

• Lifetime warranty for engines under 200hp with aluminum or stainless steel props and engines 200+hp with aluminum props only.
• MasterGuard Installation/Hub Kits carry the only Lifetime Warranty in the WORLD!
• Hubs have no warranty restrictions, except for extreme commercial use.
• Saves a boater up to 33% on replacement propeller purchases (need to purchase prop housing only).
• One piece design: durable marine Bronze with Over Molded Glass Filled Nylon for Long Life.
• Re-useable after a Prop Strike.
• Warranted even if the prop is Destroyed! (consumer normal use only, not applicable on commercial applications)
• Enhanced lower unit protection.
• Warranted even if used in competitive propeller housings (Mercury, Michigan Wheel, Solas)

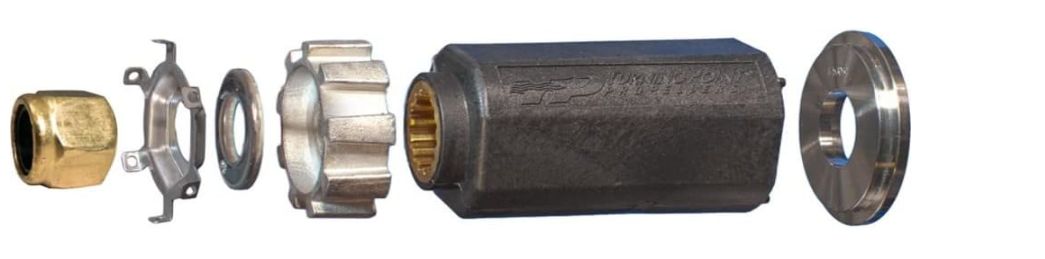

• Each kit contains a hub, thrust washer, and other hardware for installing Turning Point Express Mach3, Mach3 OS, Mach4, and Hustler propeller housings on most engines with 4.25" or 4.75" gearcase.
• Also used as a hub upgrade to fit Solas Rubex, Michigan Wheel XHS, and Mercury FloTorq propeller housings.
• Installation Kits for Evinrude®, Honda®, Johnson®, Mariner®, Mercury®, Mercruiser®, Nissan®, OMC®, Parsun®, Suzuki®, Tohatsu®, & Yamaha® Outboards and Sterndrives.
• See application chart for engine application information. Turning Point is the only company to offer MasterGuard® Installation kits and prop housings for 6-300+hp engines with a Lifetime Warranty Hub. Boaters save up to 33% when buying a replacement propeller housing. MasterGuard hubs are Re-useable most of the time after a prop strike, and if not, they are Warrantied even if the prop is Destroyed (hub warranty on consumer use only - visit https://tpprops.com/warranty for details) . These hubs offer enhancedlower unit protection.Turning Point's MasterGuard Hubs are engineered to withstand typical wear and tear over time without risk of spinning or failure under normal operational use. Turning Point's unique patented one piece hub with glass filled nylon over durable marine bronze splines eliminates failures commonly seen in multi-part "sleeve and spline" designs, and pressed-in rubber hub systems.Eliminate Hub System Vibration and Chatter: Innovative one piece design reduces the number of parts and eliminates failures commonly seen in multi-part hub systems.Eliminate Hub Cracking and Failure: The glass reinforced high-tech polymer construction increases flexibility, eliminating potential material stress fractures.Corrosion Resistant Materials: Premium corrosion resistant durable marine bronze splines.Reduce Gear Shock and Engine/Drive Damage: MasterGuard hubs offer Shock absorbing high-tech polymer cushion with lower unit protection.Easy to Install: Clear and easy step-by-step directions coupled with minimal parts makes installation easy.

Applications:

• Force (15 spline shaft):
  • 75 HP (1999)
  • 90 to 150 HP (1995+)
• Honda (15 spline shaft):
  • 75, 90 HP (1995-1998)
• Mercury and Mariner (15 spline shaft):
  • 2 and 4 stroke: 40 to 60 Bigfoot and Four Stroke CT / 70 (1987-1989) / 75, 80 (1978-1989), 90, 100, 115, 125, 140 HP / 150 XR4/6 (thru 1993, includes equivalent Mariner Magnum I, II, III)
  • Four Stroke and SeaPro 4cylinder: 40 to 75 HP
  • OptiMax: 75, 90, 115, 125 HP
  • Note: Props Not Available for '77 and Older models
• Suzuki and Johnson:
  • DF 4 stroke: 50AV, 60AV, 115A, 140, 140A
  • Note: use 4 blade props only
• Mercury and Mariner (15 spline shaft):
  • Four Stroke and SeaPro: 90CT, 115CT, 150 HP, 200 to 300 /
  • V6: 135 to 300 HP
  • Verado 135 to 300 HP(not HD)
  • OptiMax: 150, 200, 250 HP
  • Note: Use 701 Super Duty Kit for 200+ HP Engines with stainless steel propellers
  • Note: 115 HP ProXS CT Only; For ProXS and Verado with 1.25" prop shaft, use Mercury Solid Hub kit with the Turning Point Prop
• Mercruiser (15 spline shaft):
  • Alpha One and Bravo One (1983+)
  • Note: Use 701 Super Duty Kit for 200+ HP Engines with stainless steel propellers
