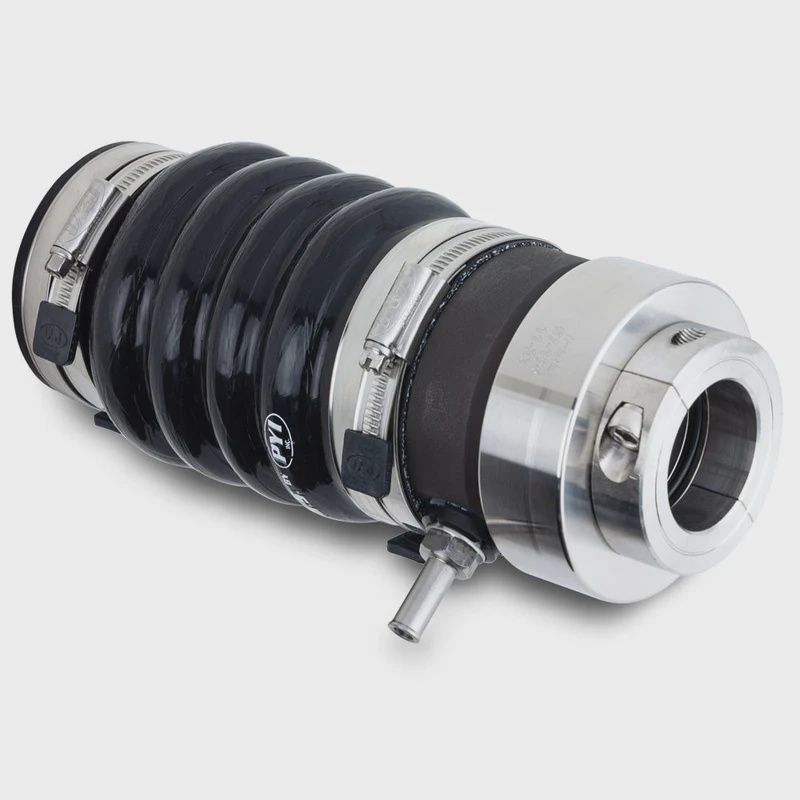

PSS PRO Shaft Seal 25mm Shaft Diameter (03-25M-134)
$604.99
Usually ships within 3 days
Out of stock, available for pre-order
Product Details
Brand: PSS
log size 1-3/4" to 1-7/8"
The PSS PRO Shaft Seal is a mechanical face seal utilizing our proven stainless steel and carbon sealing components but adds reinforced silicone bellows, 316 Stainless Steel hose clamps (rolled edges & non-perforated), and an optional Nitronic 50 rotor upgrade (for highly corrosive environments). Designed specifically for applications that will require increased durability and resistance to harsh, corrosive, high pressure, and otherwise demanding environments. The PSS PRO Shaft Seal is a specialized mechanical seal that is suitable for a variety of applications, with unmatched performance.
Certifications
- ABS Certified
- RINA Certified
- Bureau Veritas Certified
How Does It WOrk?
1. Two nitrile o-rings seal the stainless steel rotor to the shaft and will not experience wear.
2. The Shaft Retention Collar is attached to the shaft and helps retain the propeller or rudder shaft in your vessel in the event of catastrophic failure of the coupling or if the shaft comes free from the coupling.
3. A seal is created between the two mating faces of the carbon stator and the stainless steel rotor.
4. A seal is created between the two mating faces of the carbon stator and the stainless steel rotor.
5. Raw water is fed to the PSS Shaft Seal for cooling / lubricating the seal faces on high speed vessels.
6. Hose clamp tail protection, Clamp Jackets.
7. The stationary carbon stator is attached to the bellows, which is secured to the stern tube (shaft log).
8. 316SS hose clamps with rolled edges and non-perforated band.
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
PSS PRO Shaft Seal 25mm Shaft Diameter (03-25M-134)
You May Also Like
Usually ships within 2-3 days
Propeller Lock - 3/4"-16
Propeller Lock - 3/4"-16
SKU 083509740394
$154.99
Usually ships within 1-2 days

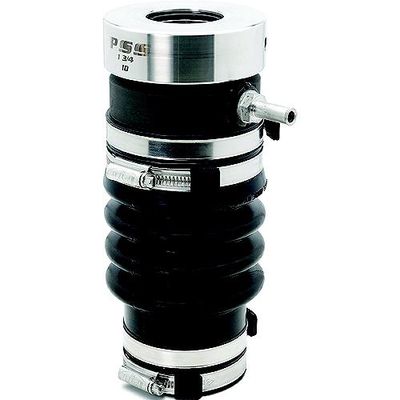

PSS Shaft Seal 7/8" (02078112 )
