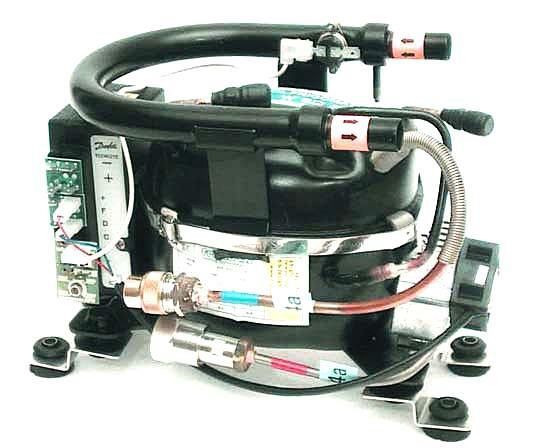

Water Cooled Condensing Unit W50F with Manual Speed Board (E51970NA)

The Frigoboat W50F Water Cooled compressor is very useful in configurations where 2 or more systems are cooling independent fridges and freezers. Up to three units can run on the same cooling pump. Water cooled systems are perfect for demands of freezers and large refrigerators in very hot climates. Frigoboat's unique oil cooler and Cupro Nickle condenser ensures the compressor operates at a lower temperature even in heavy duty marine conditions, making it smoother running and promoting a long and trouble free life.

The Frigoboat W50F Water Cooled compressor is equiped with quick-disconnect fittings, electronic module and is pre-charged.

For use with Flojet self priming pump pictured PN# A092819

The Frigoboat W50F is suitable for refrigerators up to 20 cu ft or freezers up to 10 cu ft.

• Danfoss compressor of the latest generation
• Electrical consumption 25% lower compared to other compressors
• No ventilation required
• Supplied as standard with a speed regulator board
• Pre-charged system equipped with Frigoboat self sealing couplings
• Uses non-ozone depleting refrigerant R134a
• Automatically runs on 12 to 24 volts DC
• Automatic battery protection
• Protected against lack of cooling water
• Units are 10-1/4" L x 5-5/8" W x 6-5/8" H, weigh 12.7 lbs
• Designed for continuous duty operation at up to 30° heel

R2026-2
