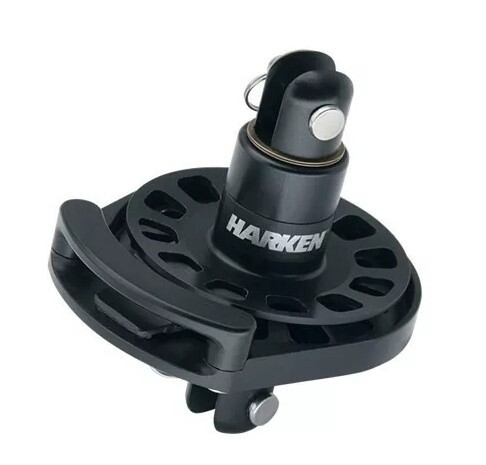

Small Boat Control Line-Drive Furler (1134)
$544.99
Usually ships within 1-2 days
Out of stock, available for pre-order
Product Details
UPC: 097653281597
Brand: Harken
The continuous line-drive furler is the perfect solution for high-performance skiffs and dinghies that use oversized jibs/gennakers and for staysails on larger boats. Unlike conventional furling drums, the low-profile line-driver never runs out of line, and can completely furl any sized sail. Offset holes in the drive sheave grip line securely, with the stripper arm and feeder working together to prevent line from jamming. The line guard adjusts in 90-degree increments to accommodate attachments to the boat.
| Weight (g) | 154 g |
| Weight (oz) | 5.4 oz |
| Maximum line Ø (mm) | 5 mm |
| Maximum line Ø (in) | 3/16 in |
| Maximum working load (kg) | 431 kg |
| Maximum working load (lb) | 950 lb |
| Use with | 164 |
| Clevis pin Ø (mm) | 6.4 mm |
| Clevis pin Ø (in) | 1/4 in |
| Drum Ø (mm) | 73 mm |
| Drum Ø (in) | 2 7/8 in |
| Pin-to-pin length (mm) | 68 mm |
| Pin-to-pin length (in) | 2 11/16 in |
| Maximum luff wire Ø (mm) | 3 mm |
| Maximum luff wire Ø (in) | 1/8 in |
| Jaw width (mm) | 8 mm |
| Jaw width (in) | 5/16 in |
