Fuel Tank Below Deck 12 Gallon

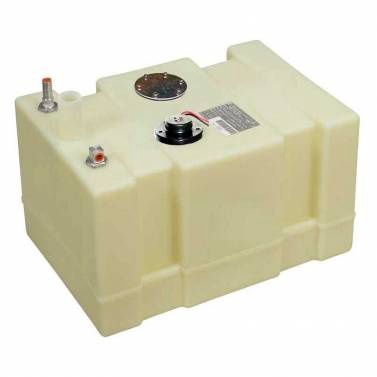

Moeller Marine 032612 12 Gallon Permanent Fuel Tank with built-in fuel level sender. Fuel tank dimensions are 20.00"L x 14.00"W x 14.25"H including fill spout. Fill spout has 1.5" OD and is approximately 2.75" long. Moeller permanent fuel tanks are suitable for gasoline or diesel fuels. Fuel Return Note: For fuel systems that require fuel return (such as diesel), the sender must be replaced with one that includes a fuel return fitting, such as Moeller 035724-10.

Features

• Utilizes rotationally molded, cross-linked polyethylene plastic, allowing for complex shape designs beyond conventional and restricted aluminum tanks.
• Moeller fittings hold the highest OD and ID tolerances in the industry, ensuring you the highest level of input flow available during tank refueling.
• Moeller fuel tanks are capable of operation within an ambient temperature range from -40 degrees F (-40 degrees C) to 176 degrees F (80 degrees C).
• Machined aluminum 3/8" withdraw/pickup fitting has 360 degree rotational capability for hook-up convenience.
• When using diesel, grade 2-D diesel fuel is required, meeting ASTM Standards D975 (or fuel rated Diesel DIN 51601), and having a minimum cetane rating of 45.
• Conforms to all ABYC, NMMA and U.S. Coast Guard regulations.
