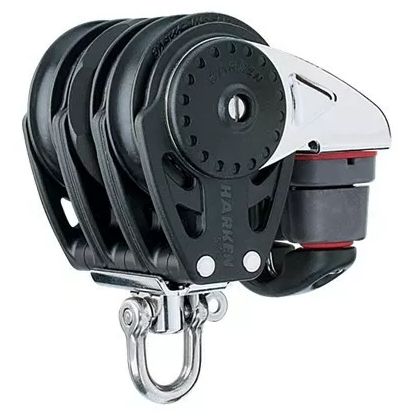

The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless.
Sheave Ø (mm) | 57 mm |
Sheave Ø (in) | 2 1/4 in |
Length (mm) | 103 mm |
Length (in) | 4 1/16 in |
Weight (g) | 421 g |
Weight (oz) | 14.9 oz |
Shackle pin Ø (mm) | 6 mm |
Shackle pin Ø (in) | 1/4 in |
Maximum line Ø (mm) | 10 mm |
Maximum line Ø (in) | 3/8 in |
Maximum working load (kg) | 680 kg |
Maximum working load (lb) | 1500 lb |
Breaking load (kg) | 1700 kg |
Breaking load (lb) | 3750 lb |
Holding power | 10:1 |
