i50 Speed Instrument -Display Only- (E70058)

The Raymarine i50 Speed Display showcases both through-water velocity and speed over ground, complemented by sea surface temperature readings and essential trip and log data.

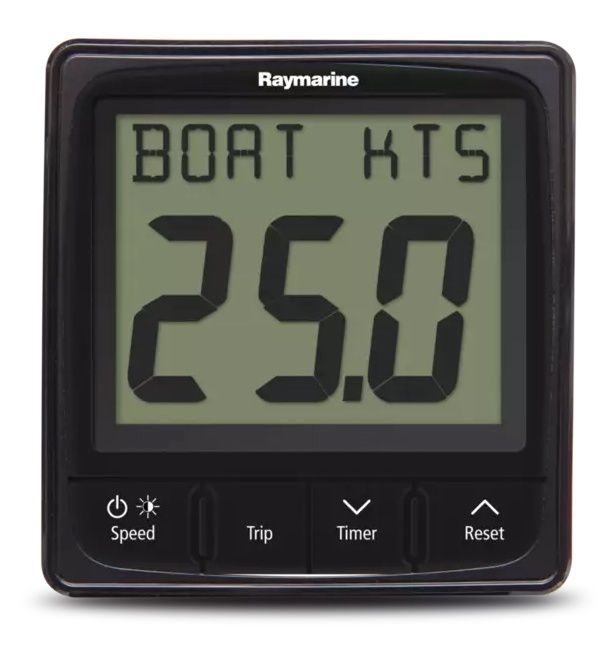

Raymarine i50 Speed Display

The Raymarine i50 Speed instrument display is expertly crafted for effortless monitoring of your vessel's speed, whether it's through water or over ground. In addition to speed, the i50 Speed display provides valuable trip and log data, as well as water temperature readings. Perfectly suited for RIBs, powerboats, and smaller yachts, the unassuming yet potent SeaTalk i40 Depth instrument display is easily visible, even in low-light conditions, due to its large digits and razor-sharp LCDs.

Every Raymarine i50 instrument is engineered for complete integration with Raymarine's autopilot systems and other navigational devices. Each i50 unit can function as a Master display, housing its own transducer, or as a Repeater display, presenting data from another source within the network. The i50 instruments come SeaTalkng network-ready, ensuring effortless compatibility with both NMEA2000 and legacy SeaTalk networks.

Raymarine i50 Speed Display - Main Features

• Enlarged digits for effortless day or night viewing

• Night visibility enhanced by red backlighting

• Compatibility with SeaTalk NG, NMEA2000, and SeaTalk networks

• Integrated speed/temperature transducer interface

• Space-efficient design

• Minimal power usage

• Options for surface mounting or an additional trunnion mount kit

Raymarine i50 Speed Display- What's in the Box

• i50 Instrument display

• Suncover (to match i70s, p70s, p70Rs, eS Series)

• Front bezel (to match i70s, p70s, p70Rs, eS Series)

• Gasket

• Suncover (to match a, c, e Series)

• Front bezel (to match a, c, e Series)

• 400mm (15.7 in) SeaTalkng spur cable

• SeaTalkng blanking plug

• Fixing screws x4

• Documentation

Raymarine i50 Speed Display - Specifications

• Dimensions: Width: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in)

• Connections: 2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections

• Relative humidity: Max. 93%

• Waterproof rating: IPx6

• Storage temperature: -30 °C to +70 °C (-22 °F to 158 °F)

• Operating temperature: -20 °C to +55 °C (-13 °F to 131 °F)

• Current (typical / max): 45-65 mA (display only) / 200 mA maximum (transducer connected)

• Nominal supply voltage: 12 V dc

• Operating voltage range: 10 V dc to 16 V dc

• Power consumption: < 1 W typical (display only), 2.4 W maximum (transducer connected)

• LEN (NMEA 2000 Load Equivalency Number): 4
