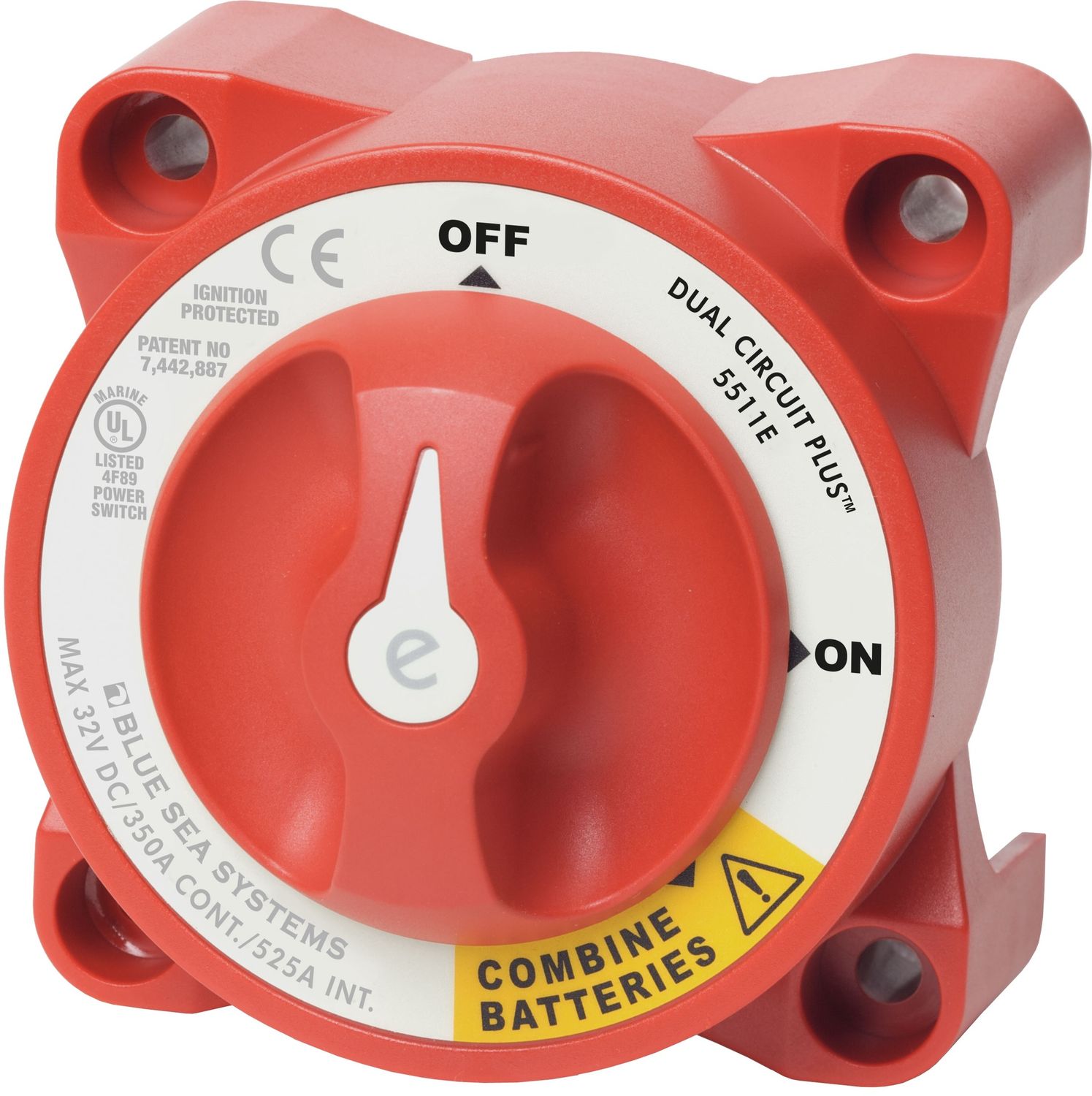

e-Series Dual Circuit Plus™ Battery Switch (5511e)
$107.99
Usually ships within 2-3 days
Out of stock, available for pre-order
Product Details
Brand: Blue Sea systems
Simultaneously switches two isolated battery banks or combines battery banks to all loads
- Make-before-break contact design allows switching without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
| Specifications | |
|---|---|
Switch Type  |
Dual Circuit Plus |
| Color | Red |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect |
No |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating |
350A |
| Intermittent Rating |
525A (5 min) |
| Starting Rating 30 sec |
700A per circuit |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Stud Material | Tinned Copper |
| Switching Rating | 25A |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 1.16lb (0.53 kg) |
| Weight | |
