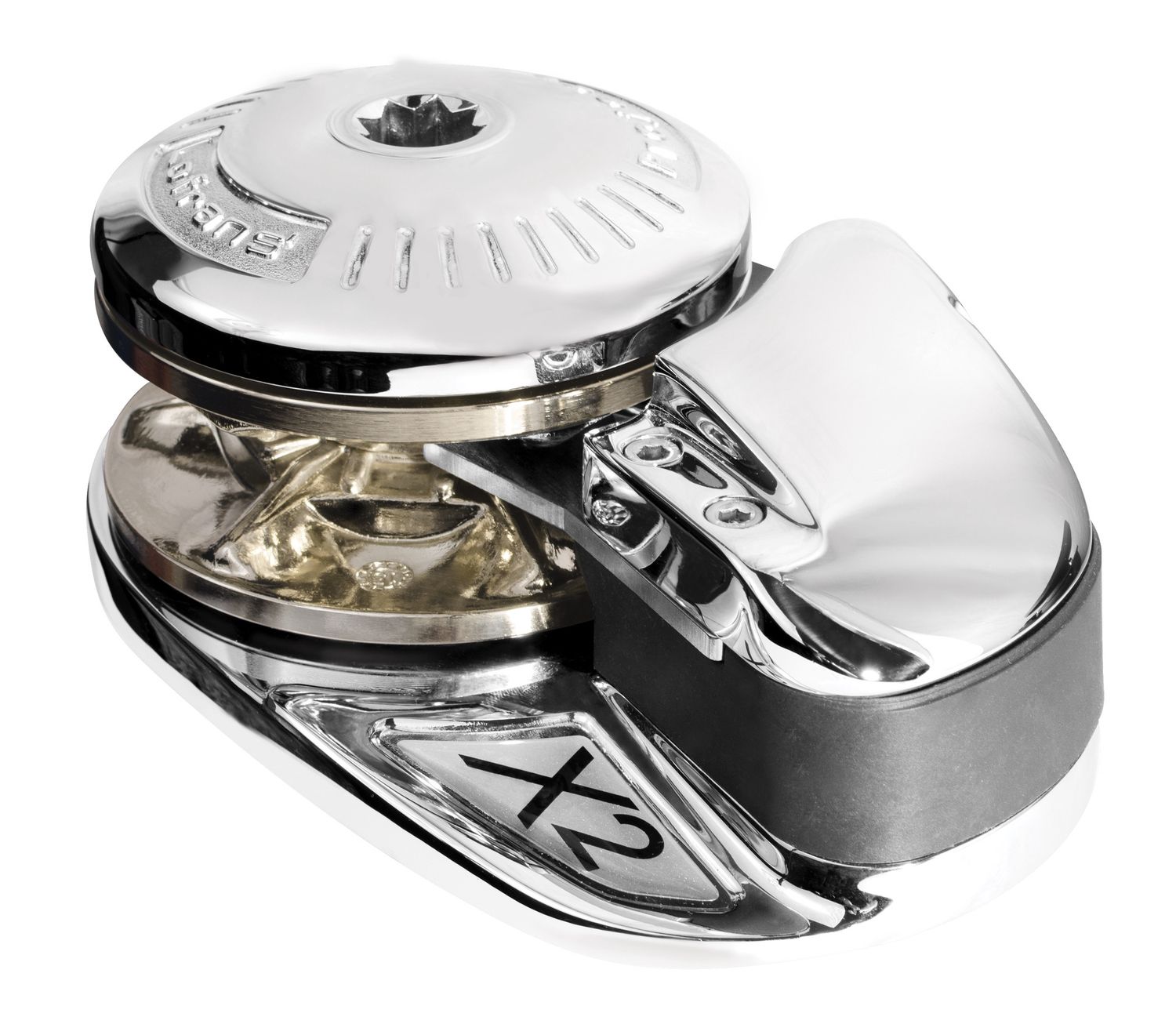

Windlass X2 Lo-Profile 1000W

• Motor: 1000 Watt
• Gypsy Chain Size: 5/16" HT
• Rope Size: 9/16" (14mm) 3 strand
• Haulage Speed: 59-79ft /min (18-24 m/min)
• Current Draw: 80-120 Amp (1200 Watt 12 Volt)
• Maximum Pull: 1000 Kg (2200 lb) - 1000 Watt
• Weight: 20 Kg (44 lb)

The X2 Windlass is suitable for a boat length, in feet of 35' to 45' for Heavy Duty applications, and for Light Duty of 45' to 50'.

Lofrans Windlass Features

• 5/16" HT chain and rope combination gypsy installed
• The main shaft is in stainless AISI 431 with a high mechanical strength.
• Luxury chrome bronze base and drum, polished.
• The worm-wheel is in alloy bronze - worm is in 38NCD4 steel.
• Screws and outer components are in stainless AISI 304 or AISI 316.
• The Lofrans gearbox is made for high mechanical efficiency and designed for marine use.
• The gearbox ratio from 1/50 up to 1/75 is the right compromise between performance and speed.
• The long life oil bath lubrification protects the internal components of the gearbox from wear and tear and reduces the noise.
• The gear case is black anodized for long-life protection.
• Shaft, screws, nuts and cover made in stainless steel.
• Manual chain release. Rope chain management by the spring loaded arm
• Chain counter magnet pre-installed as standard

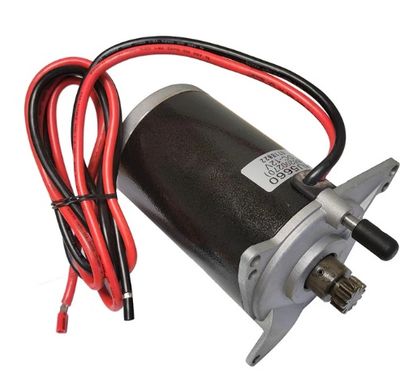

• Electric motor case protected by a black paint. IP67 rated heavy duty electric motor
• Most of Lofrans electric motors are series-wound. They have the advantage over the less expensive permanent magnet motors to produce an initial starting torque which can be useful in critical situations.

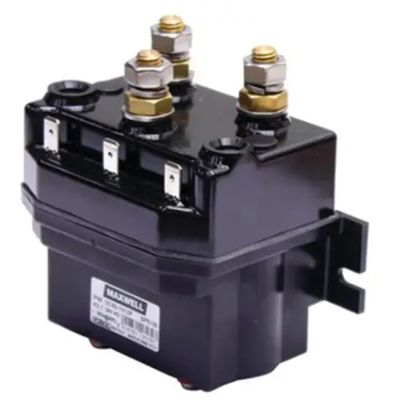

Project X2 ships with Solenoid Control Box. Switches and 100A Circuit Breaker are required and sold separately.
