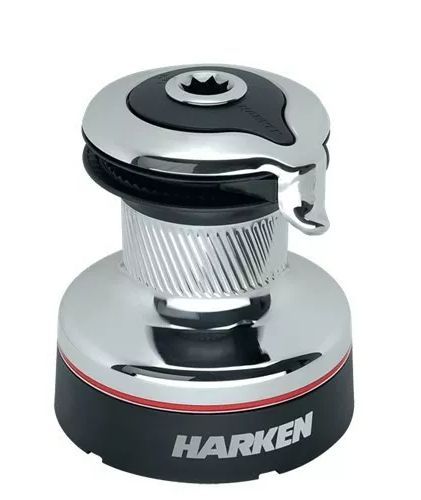

The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Weight (kg) | 5.4 kg |
Weight (lb) | 11.9 lb |
Maximum line Ø (mm) | 12 mm |
Maximum line Ø (in) | 1/2 in |
Fasteners (mm) | M6 SH mm |
Fasteners (in) | 1/4 SH in |
Fastener circle (mm) | 123 mm |
Fastener circle (in) | 4 7/8 in |
Height (mm) | 175 mm |
Height (in) | 6 7/8 in |
Number of fasteners | 5 |
Minimum line Ø (mm) | 8 mm |
Minimum line Ø (in) | 5/16 in |
Configuration | Self-tailing |
Speed | 2 |
Drum Ø (mm) | 80 mm |
Drum Ø (in) | 3 1/8 in |
Base Ø (mm) | 157 mm |
Base Ø (in) | 6 3/16 in |
Line entry height (mm) | 82 mm |
Line entry height (in) | 3 1/4 in |
Gear ratio - 1 | 2.13 |
Gear ratio - 2 | 6.28 |
Power ratio - 1 | 13.50 |
Power ratio - 2 | 39.90 |
Material | Chrome |
Available power | Manual |
