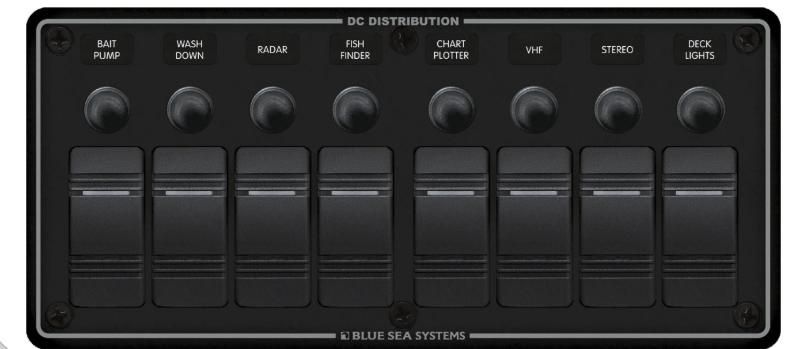

Water Resistant Circuit Breaker Panel 8 Position-Black (8371)

• Designed for flybridge and open cockpit applications
• Panel front is rated IP66—Protected against powerful water jets
• Ignition protected—safe for installation aboard gasoline powered boats
• ON-OFF Contura Switches
• ON indicating LEDs embedded in switch
• Watertight mounting gasket
• Push Button Reset-Only circuit breakers with waterproof boots

Water Resistant Circuit Breaker Panel - 8 Position Horizontal - Black - Width - 9.37" (238.00mm) Height - 4.25" (107.95mm) Weight - 1.34 lb. (0.61kg) - designed for flybridge and open cockpit applications. - water resistant ON-OFF Contura Switches. - watertight mounting gasket. Voltage - 12 or 24 Volts DC. - push botton Circuit Breaker with waterproof boot. - rate IP66 - "Use on Shipdecks" Switch Rating: 20A @12 Volts, 15A @ 24 Volts. Water resistand panel labels are not backlightable. - Ignition Protected - safe for installation aboard gasoline powered boats. - meets Ul1500 and ISO 8846 ignition protection requirements. - Switch LED Amp Draw - 18 Millamperes each. Countersunk mounting holes. - heavy 1/8" aluminum material. 2 part polyurethane finish. - Panel Cumulative Rating - 45 Amperes. Circuit Breaker Rating - 15 Amp. - MIL-C-5441C or equivalent immersion undercoating for liftime corrosion resistance. - Completely wired and ready to install. Includes set of 60 commom DC lables.
