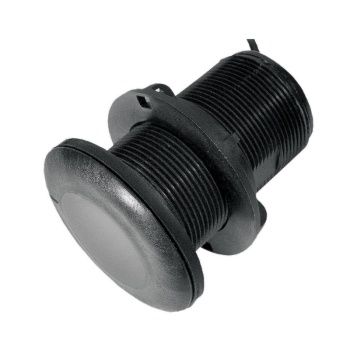

Thru-hull Transducer (E66013)

Raymarine E66013 Depth Transducer Thru-hull Low Profile P319

Compatible with the following Raymarine sonar embedded displays when used with the proper Adapter. See Raymarine Transducer Comparison & Adapters below.

• Axiom DV - Adapter #4 A80485
• Axiom + RV - Adapter #5 A80489
• Axiom Pro RVX and Axiom 2 Pro RVM - Adapter #6 A80496

Also used with Raymarine DSM30 & DSM300 HD Digital Sounder Modules

• Compatible hull material: fibreglass and metal
• Depth Only
• Max Power: 600 watts
• Dual-frequency element:
  • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200')
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
• Right-angle cable exit saves space and protects the transducer if stepped on
• The included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Low-profile housing has minimum drag
• Plastic housing is ABYC H-27 compliant
• Cable: 33' (10m) cable with 7-pin CP370 connector
• Hole diameter for installation: 2"
• Hull Deadrise: Best performance through 7°. Can accommodate up to 12°.
