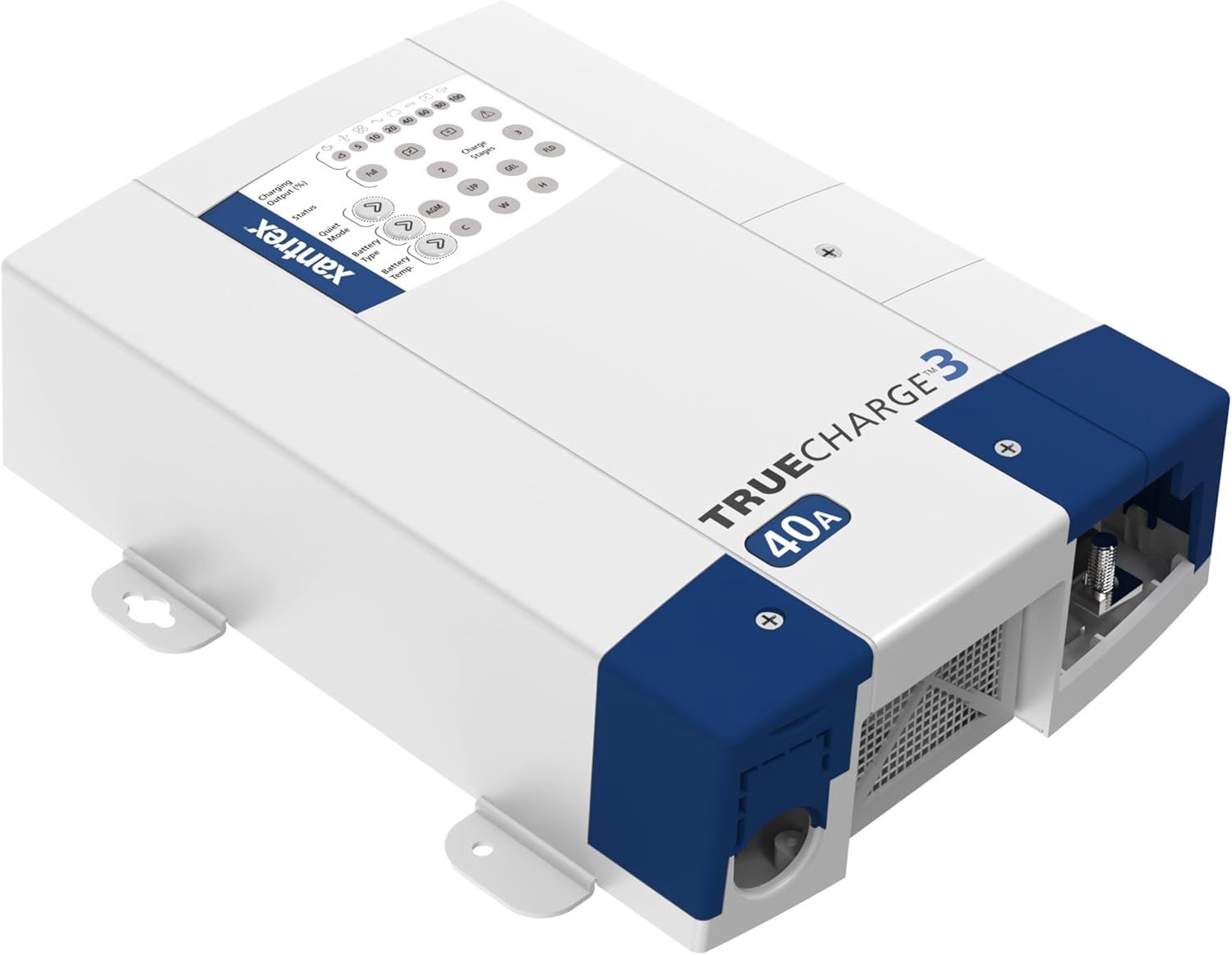

TRUEcharge 3 Multistage Charger - 12V/40A, Hardwire, 3-Bank
$665.99
New!
In stock: 1 available
Product Details
UPC: 715535920814
Brand: Xantrex
- Lithium-Ion Compatible Connect TrueCharge3 battery charger with Lithium, flooded, gel, AGM
- Parallel Stacking to allow two chargers to work together to combine the output current, achieving up to 120A for large battery banks; Remote panel 808-8040-10 required for stacking
- Universal input voltage capable 95-265 Vac, 47-63 Hz
- Drip proof design for flexible mounting and safety in marine environments
- Small footprint and ultra-compact design
Electrical Specifications
25°C unless otherwise noted. *90 – 104Vac ± 4Vac output de-rated to 80% of full load current.
TRUECHARGE3 20 / 40 / 60
Output current (nominal)
20 A / 40 A / 60 A
Output voltage (nominal, depending on settings)
Charge
14.2 – 15.5 Vdc
Float
13.4 – 13.8 Vdc
Equalize
16 V
DC output connections
Three
AC input voltage*
90-265 Vac; 47-63 Hz; 120 Vac, 230 Vac, 240 Vac nominal
Temperature compensation
Three settings
Charger efficiency
> 80%
Battery type
Gel, Flooded, AGM, Lithium-Ion
Minimum recommended battery bank size
40 Ah / 80 Ah / 120 Ah
General Specifications
*Output current derates above 50°C (except 40 A model which derates above 40°C). Highly Accelerated Life Tested (HALT) to -20°C.
TRUECHARGE3 20 / 40 / 60
Operating temperature*
0–60°C (32–140°F)
Storage temperature
-40–80°C (-40–176°F)
Battery connection
Three positive terminals, One negative terminal
Dimensions (H x W x L)
20 A & 40 A – 70 x 170 x 250mm (2.8 x 6.7 x 9.8”); 60 A – 90 x 170 x 340mm (3.5 x 6.7 x 13.4”)
Weight
20 A & 40 A – 4.8 lb (2.2 kg); 60 A – 9.9 lb (4.5 kg)
Warranty
Five years
Part Numbers
804-1220-10 / 804-1240-10 / 804-1260-10
User manual
