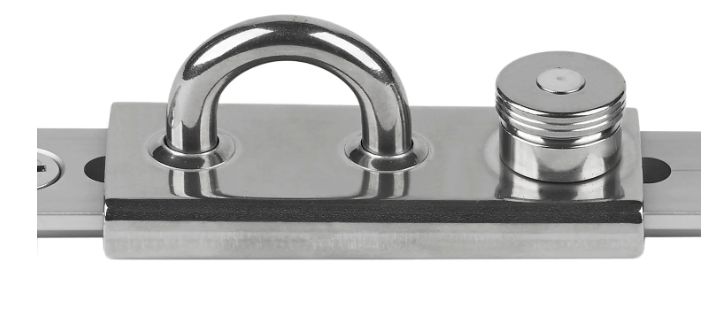

T-Track Slider (72-49)

Schaefer's (72-49) T-Track Slider with eye and screw pin adjustment is designed with real world loads in mind, allowing you complete control under a variety of conditions.

Features:

• Incorporates Schaefer's captive slide liner system which offers a reliable solution for metal to metal contact
• Handles tremendous tension and compression loads
• Welded bail accepts a variety of attachments

Specifications:

• Maximum boat size:
  • LOA: 38'
  • Displacement: 12,000lbs. (5,455kg)
  • Sail Area: 520sq. ft. (48m2)
• Dimensions: 4" x 1-11/16" x 1-3/4" (102 x 43 x 45 mm)
• Eye size: 1" x 29/32" (25 x 23 mm)
• Safe working load: 2,500 lbs (1134 kg)
