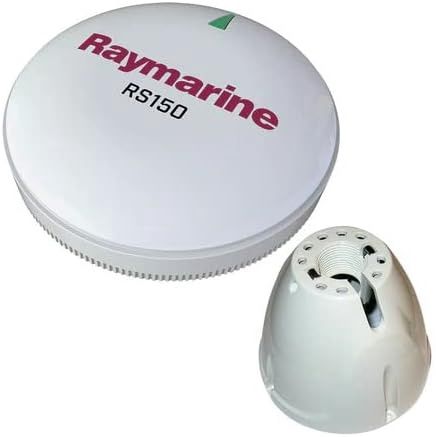

Raystar 150 GPS with Pole Mount (T70327)

Raymarine T70327 Raystar RS150 GPS Antenna with Pole Mount Adapter is a compact and accurate Satellite Differential GPS.

Features:

• Receiver provides pinpoint accuracy to Raymarine's Multifunction displays
• A self contained waterproof GPS receiver and antenna combined
• Delivers accuracy better then 3 m by decoding GPS correction signals from the WAAS or EGNOS Systems
• Includes a 1"-14 TPI antenna mount adaptor, for mounting on a standard threaded antenna mount
• 72-channel GPS receiver
• Fast 10Hz position updates
• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
• A GNSS receiver with GLONASS compatibility
• SeaTalk ^ng and NMEA2000 compatible (using a device net adapter cable)
• Designed for low profile surface mounting or optional pole mounting

Specifications:

• Nominal supply voltage: 12V DC (Powered by N2K/SeaTalk ^ng bus)
• Operating voltage range: 8 - 32V DC
• Power consumption: 30 mA max (NMEA LEN = 1)
• Operating temperature: -13 to 131 F (-25 to +55 C)
• Relative humidity max: 93%
• Waterproof: IPx6/7
• Supported connection protocols: SeaTalk ^ng, NMEA 2000 (certified) (via DeviceNet adaptor)
• Sensitivity: High sensitivity - acquisition down to -163dBm
• No. of channels: 72
• Positioning system: GPS & GLONASS
• Satellite differential type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
• Differential acquisition: Automatic
• Position accuracy: (95%) <15m
• Position accuracy with SDGPS: (95%) <5m
• Speed accuracy: (95%) <0.3kt
• Time to first fix from cold start: <2 minutes (< 45 seconds typical)
• Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start
• Geodetic Datum: WGS84
• Mounting: Surface/rail/pole (Rail or pole mount requires pole mounting adaptor - Included)
  • May be mounted on a surface that is up to 28 mm (1.10") thick, approximately. To mount on a thicker surface longer studs will be required

Included:

• RS150 GPS Antenna with Pole Mount Adapter
• Mounting gasket
• 6 m (19.69') SeaTalk ^ng spur cable
• Documentation
• (3) M4 x 40 mm threaded studs
• (3) Finger nuts

Note: Seatalk ¹ systems need the optional E22158 converter kit (sold separately).
