Propane Fume Detector with Alarm and Solenoid

Propane Fume Detectors are an effective means to monitor propane fumes in an engine compartment, or fuel systems.



In addition, this unit has the ability to control the flow of LPG or CNG to appliances with the included Xintex Solenoid Valve 95004.

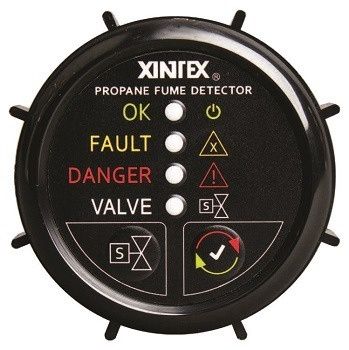

Kit contains a single plastic FS-T01-S Fuel Sensor, located in a place of interest such as the bilge, a 2-3/16" Black P1BR-S01-D Single Channel Display unit that notifies you to the state of the system.



There are three (3) LED's located on the Display unit, as well as an LED for the Solenoid Valve status. The Green LED, located at the top, indicates that system is operational. The Yellow LED, located in the centre, indicates if there is a fault in the system. This is to notify the user to check the connections and wire runs of the Sensor.



The Red LED, located at the bottom, indicates a fume buildup of 20% of the Lower Explosive Limit (LEL) which is considered an alarm. The 68 dB Alarm Horn will sound when the Red LED is illuminated.



Whenever the Valve status LED is illuminated, the Solenoid Valve is open.



Boxed kit contains:

• Xintex Propane (LPG) Detector P1BR-S01-D
• Plastic Fuel Sensor FS-T01-S
• 20' Quick Connect Extension Cable FS-X01 CABLE 20'
• 1/4" Solenoid SV-1 95004
• 3/8" Male Flare to 1/4" Female Adapter PF-5446
• Manual 18143

• Single Channel: Maximum of one Sensor
• Bezel Diameter: 2-3/16" (56 mm)
• Cutout: 2-1/16" (52 mm) Round hole
• Operating Voltage: 9-30V DC
• Nominal Current Draw: 55mA @ 12V DC
• Maximum Current Draw: 725mA @ 9V DC
• Reverse Polarity Protected: Yes
• Operating Temperature: -40 to 185°F (-40 to 85°C)
• Alarm Horn: 68 dB
• Solenoid:
  • 12V DC
  • 1.2A Maximum
  • 312 PSI Maximum
  • 1/4" Female NPT Inlet, 1/4" Male NPT Outlet
