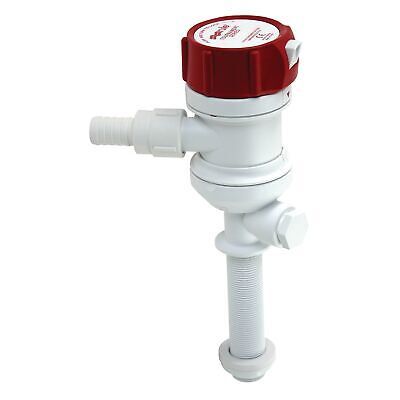

Livewell Pump 500 GPH 12V

The innovative new cartridge livewell design includes many new and exciting features, including a patent pending rotatable hose discharge port that allows you to position the hose nozzle at any location, a quick push button motor cartridge removal system and threaded nylon hose barb attachments (straight and 90 degree included) which allows for various hose mounting options.

Features:

• 90 degree discharge nozzle can be rotated 360 degrees for optimal installation.
• Pump housing can be rotated 360 degrees to allow positioning of the discharge outlet.
• Quick one hand push button motor cartridge removal system.
• Dual port fitting for optional washdown pump.
• For Thru-Hull Applications Straight 4-3/4" (121mm) Pickup Tube.

Specifications:

• • Flow Rate: 500 gph / 1893 lph
  • Discharge: 1 1/8 inch / 28.6 mm
  • Port Inlet Size: 3/4 (19mm) 14NPSM
  • Port Outlet Size: 3/4 (19mm)
  • Dual Port Size: NPT
  • Voltage: 12 Vdc
  • Amp Draw: 2.1 amp
  • Fuse Size: 2.5 amp
