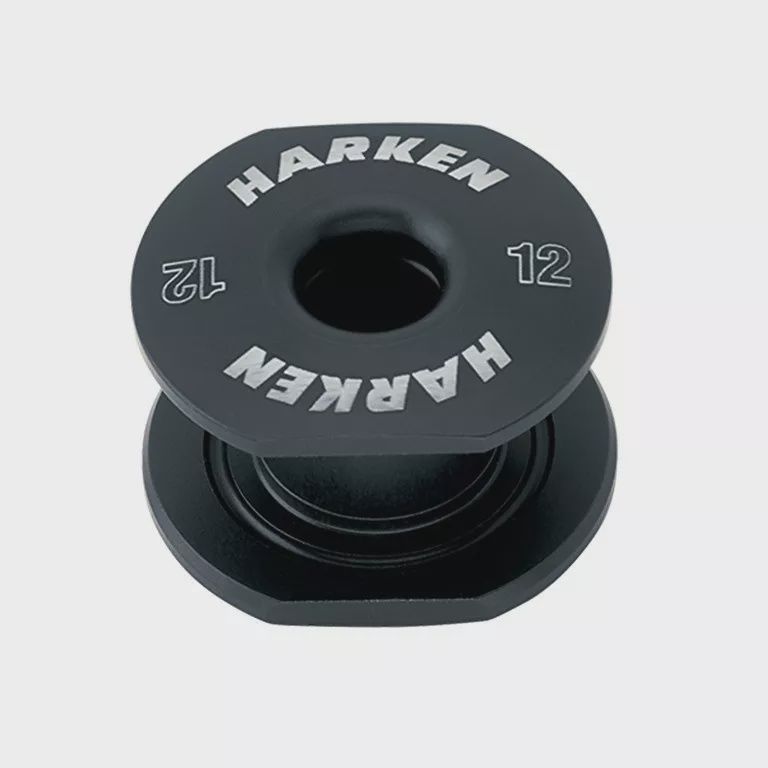

Double-sided through-deck bushings are perfect for installing soft-attach loops to protect line from wear and also to separate line.
Weight (g) | 31.1 g |
Weight (oz) | 1.1 oz |
Maximum working load (kg) | 1500 kg |
Maximum working load (lb) | 3300 lb |
Ø (mm) | 40.8 mm |
Ø (in) | 1.606 in |
Center hole Ø (mm) | 12 mm |
Center hole Ø (in) | 0.472 in |
Shaft outer Ø (mm) | 21 mm |
Shaft outer Ø (in) | 0.827 in |
Drill size (mm) | 22 mm |
Drill size (in) | 7/8 in |
Minimum deck thickness (mm) | 18 mm |
Minimum deck thickness (in) | 0.709 in |
Maximum deck thickness (mm) | 28 mm |
Maximum deck thickness (in) | 1.102 in |
