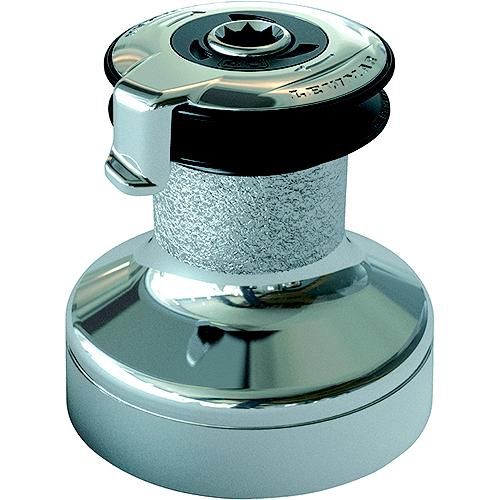

Evo 2-Speed Self-Tailing Chrome Bronze Winch (49540056)

The Lewmar EVO Self-Tailing Winch, Size 40 is a development that contains years of knowledge and understanding of what boat builders and sailors want. No compromises have been made in terms of quality or integrity of design. You won't find much plastic here; Lewmar uses high quality alloys and metal! Lewmar's EVO Winch Range evolution from their renowned Ocean Winch.

• Easy Servicing: No tools are required to service a Lewmar EVO winch, simply unscrew the top cap with your fingers to remove the drum and provide access to the proven gear train. If you try to put a Lewmar EVO winch together wrongly, it will become very clear that you've got it wrong; it is impossible to service the winch and put it back together incorrectly. Safety and convenience has been designed into every EVO winch
• User friendly direction arrows: A simple safety feature is the direction arrow, which means all your crew loads the line on the winch correctly that will make sailing more fun for the entire family
• Choice of three finishes: Multiple styles and finishes EVO winches are available in black or gray alloy and chrome bronze for the cruising sailor. The range is available with single speed or two speed, manual winches and electric winches are available from size 40 through to 65
• Wave Spring jaw and stripper ring: The integrated investment cast stainless steel feeder arm completely covers the winch, and does not create a rope trap above our WaveSpring jaws. Directional arrows allow fool proof loading of the winch, a very helpful feature if you are sailing with an inexperienced crew. The stripper position can be adjusted to smoothly feed the rope out of the jaws and into the cockpit, while the proven stripper ring goes round the WaveSpring. Lewmar's unique design ensures you cannot snag that loose rope cover, no matter how long you have been using your sheets
• Convertible to electric

• Drum Diameter: 2-15/16"
• Base Diameter: 5-13/16"
• Height: 6-1/4"
• Line Entry: 3-1/8"
• Line Size: 5/16" - 1/2"
• 1st Gear Ratio: 1.9:1
• 2nd Gear Ratio: 5.8:1
• 1st Power Ratio: 13.2:1
• 2nd Power Ratio: 40.2:1
• Safe Working Load: 1753 lbs
• Weight: 10.7 lbs
