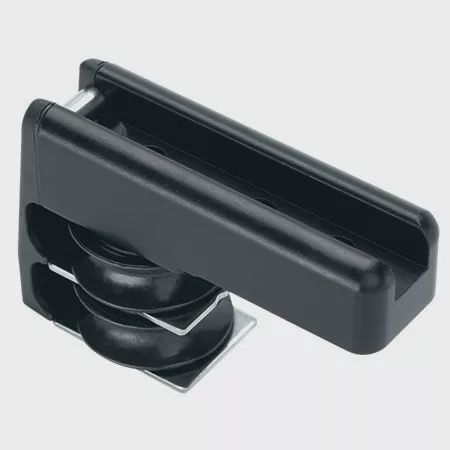

ESP end controls are value-oriented options for the installation of 2:1 to 5:1 systems. Designed for strength and durability, controls feature axle bearing sheaves with sideload ball bearings. Use E2750HB double-sheave end controls for cabintop travelers with cars using 3:1 or 4:1 purchases. Contact Harken® to order special length track with mounting holes for E2750HB end controls.
Sold in pairs
Length (in) | 4 1/4 in |
Sheave Ø (mm) | 40 mm |
Sheave Ø (in) | 1 9/16 in |
Length (mm) | 108 mm |
Width (mm) | 40 mm |
Width (in) | 1 9/16 in |
Maximum line Ø (mm) | 10 mm |
Maximum line Ø (in) | 3/8 in |
Maximum working load (kg) | 272 kg |
Maximum working load (lb) | 600 lb |
Breaking load (kg) | 544 kg |
Breaking load (lb) | 1200 lb |
Height above track (mm) | 25 mm |
Height above track (in) | 1 in |
Weight for pair (g) | 662 g |
Weight for pair (oz) | 23.4 oz |
Purchase | 3:1 / 4:1 |
