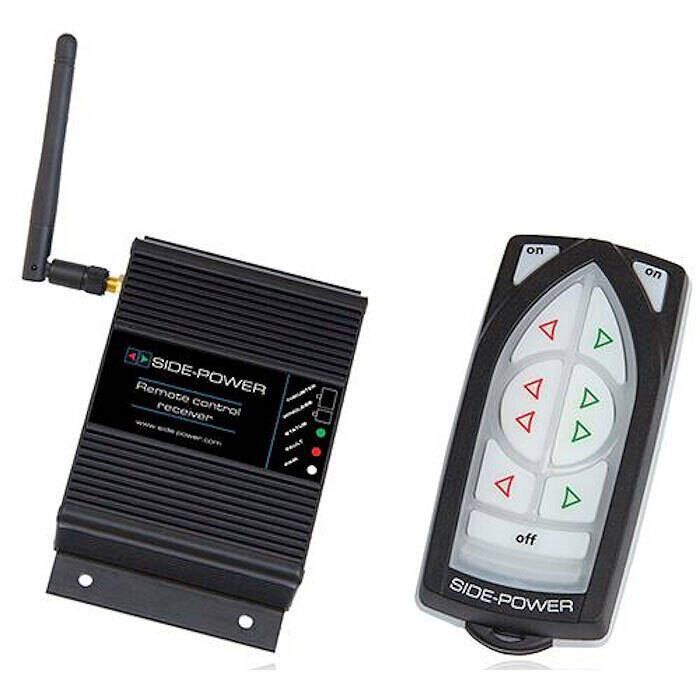

Dual Control Radio Remote Control Kit (SMRC-20U)

The Side-Power SMRC-20U designer Radio Remote Control is the coolest addition to thruster controls. This is a plug and play addition to any existing Side-Power Thruster system allowing more functional use of the equipment.

The hardware and software of the former RC-1 models have now been totally re-designed. All models are now operating on the 868Mhz band with a new communication protocol, designed to better withstand external interference

Features:

• Two Way communication with audiovisual warning for communication error and low thruster voltage
• External antenna solution for better reception, easier remote placement of antenna
• More energy efficient transmitter
  • Uses only one battery, maintains operating time from earlier models with two batteries
• Dedicated version for S-Link thrusters (8730 interface is no longer required)

Specifications:

• Power feed
  • Transmitter: (1) 3V battery (type: CR2032)
  • Receiver: 12V DC or 24V DC power source
• Frequency (MHz)
  • Transmitter: 868MHz
  • Receiver: 868MHz
• RF-power
  • Transmitter: <10mW
  • Receiver: <10mW
• Operation temp.
  • Transmitter: -10° C / +55° C
  • Receiver: -15° C / +55° C
• HxWxD (mm)
  • Transmitter: 107 x 47 x 21
  • Receiver: 83 x 136 x 36
• Weight (g)
  • Transmitter: 60
  • Receiver: 275
• Voltage: 8-30V DC
• Standby power: <300mW
• Max Load: 4 Amp
• Operating range: 30 meter under normal operating conditions
