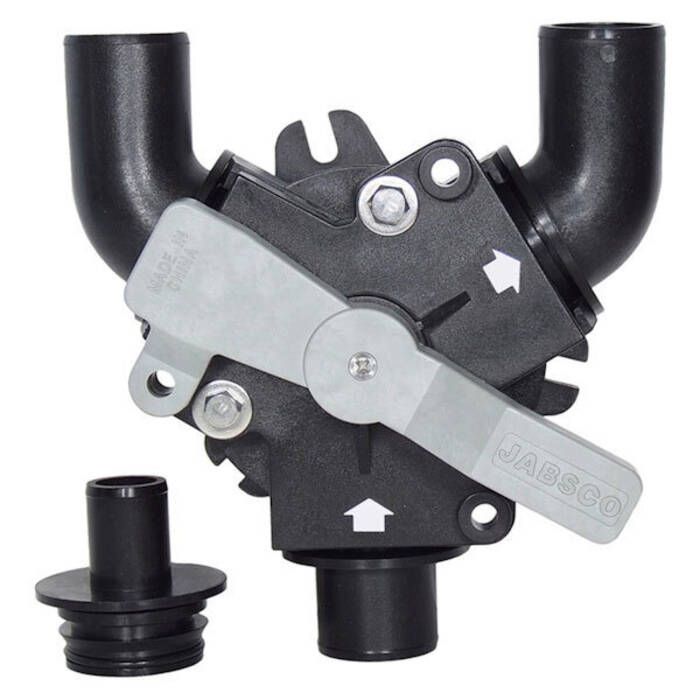

Diverter Y-Valve (45490-1000)

The Jabsco Diverter Y-Valve provides flexibility of onboard waste management by diverting waste either into an onboard holding tank, to a waste deck plate for removal by a shoreside pump-out facility.

Features:

• Provides the ability to add a padlock that secures the selector handle in either direction to ensure waste is directed to an onboard holding tank
• Can also be used in a bilge pumping system to select between two separate bilge pickups in different bilge compartments
• Provides for evacuation of two separate bilge areas with only one bilge pump
• Chemical and corrosion resistant polypropylene and stainless steel construction
• Ports can be rotated so discharge plumbing can be routed away in parallel, at 90°
• Ports can also be rotated in opposite directions, or either up or down without disassembly
• This Y-Valve is supplied with Two 1 1/2" (38 mm) fitted, dischargeports and one 1 1/2"(38 mm), fitted, straight inlet port
• A 1" (25 mm) Straight inlet port is also supplied with this package
• Optional shaft extension allows valve to be mounted through a bulkhead up to 1-3/4" thick with only the selector handle exposed
• Self cleaning design provides trouble free operation
• Molded in flow direction indicator arrows
• Easy access to three sturdy mounting feet for quick and simple installation
• Check local and Federal regulations to determine where direct overboard discharge of untreated waste is permitted. No overboard discharge of untreated waste is allowed within three miles of shore
