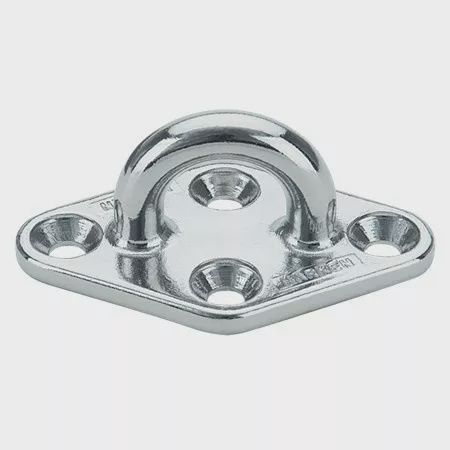

Diamond Padeye 98mm Stainless (689)
$59.99
Pre-order
Out of stock, available for pre-order
Product Details
UPC: 097653011934
Brand: Harken
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. Harken® offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mastbases where the diamond shape allows them to be mounted very close together.
| Weight (g) | 213 g |
| Weight (oz) | 7.5 oz |
| Fasteners (mm) | 8 FH mm |
| Fasteners (in) | 5/16 FH in |
| A (mm) | 98 mm |
| A (in) | 3 7/8 in |
| B (mm) | 59 mm |
| B (in) | 2 5/16 in |
| C (mm) | 73 mm |
| C (in) | 2 7/8 in |
| D (mm) | 35 mm |
| D (in) | 1 3/8 in |
| E (mm) | 40 mm |
| E (in) | 1 9/16 in |
| F (mm) | 22 mm |
| F (in) | 7/8 in |
| G (mm) | 27 mm |
| G (in) | 1 1/16 in |
| Maximum Working Load - angle 1 (kg) | 3855 kg |
| Maximum Working Load - angle 1 (lb) | 8500 lb |
| Maximum Working Load - angle 2 (kg) | 3628 kg |
| Maximum Working Load - angle 2 (lb) | 8000 lb |
| Maximum Working Load - angle 3 (kg) | 3540 kg |
| Maximum Working Load - angle 3 (lb) | 7800 lb |
| Breaking load - angle 1 (kg) | 8618 kg |
| Breaking load - angle 1 (lb) | 19000 lb |
| Breaking load - angle 2 (kg) | 7800 kg |
| Breaking load - angle 2 (lb) | 17200 lb |
| Breaking load - angle 3 (kg) | 7075 kg |
| Breaking load - angle 3 (lb) | 15600 lb |
