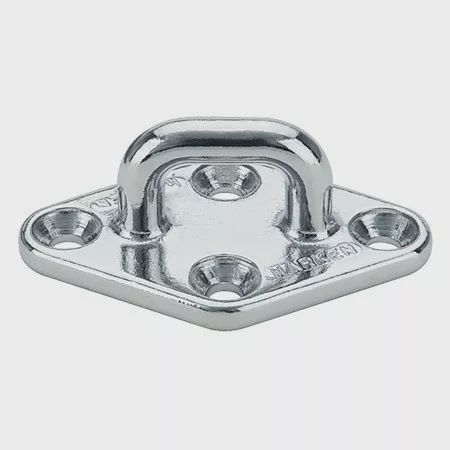

Diamond Padeye 79mm (688)
$46.99
Usually ships within 3 days
Out of stock, available for pre-order
Product Details
Brand: Harken
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. Harken® offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mastbases where the diamond shape allows them to be mounted very close together.
| Weight (g) | 135 g |
| Weight (oz) | 4.75 oz |
| Fasteners (mm) | 6 FH mm |
| Fasteners (in) | 1/4 FH in |
| A (mm) | 79 mm |
| A (in) | 3 1/8 in |
| B (mm) | 51 mm |
| B (in) | 2 in |
| C (mm) | 60 mm |
| C (in) | 2 3/8 in |
| D (mm) | 32 mm |
| D (in) | 1 1/4 in |
| E (mm) | 30 mm |
| E (in) | 1 3/16 in |
| F (mm) | 14 mm |
| F (in) | 9/16 in |
| G (mm) | 22 mm |
| G (in) | 7/8 in |
| Maximum Working Load - angle 1 (kg) | 1770 kg |
| Maximum Working Load - angle 1 (lb) | 3800 lb |
| Maximum Working Load - angle 2 (kg) | 2270 kg |
| Maximum Working Load - angle 2 (lb) | 5000 lb |
| Maximum Working Load - angle 3 (kg) | 1950 kg |
| Maximum Working Load - angle 3 (lb) | 4300 lb |
| Breaking load - angle 1 (kg) | 3540 kg |
| Breaking load - angle 1 (lb) | 7800 lb |
| Breaking load - angle 2 (kg) | 4535 kg |
| Breaking load - angle 2 (lb) | 10000 lb |
| Breaking load - angle 3 (kg) | 3900 kg |
| Breaking load - angle 3 (lb) | 8600 lb |
