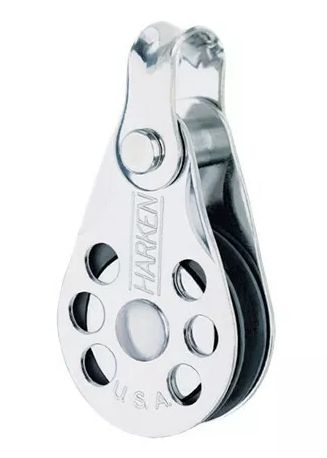

Lightweight, low-friction wire blocks carry wire halyards and high-strength control lines on boats of all sizes.
Sheave Ø (mm) | 38 mm |
Sheave Ø (in) | 1 1/2 in |
Weight (g) | 78 g |
Weight (oz) | 2.75 oz |
Maximum line Ø (mm) | 5 mm |
Maximum line Ø (in) | 3/16 in |
Maximum working load (kg) | 680 kg |
Maximum working load (lb) | 1500 lb |
Breaking load (lb) | 3000 lb |
Breaking load (kg) | 1361 kg |
Shackle pin Ø (mm) | 6 mm |
Shackle pin Ø (in) | 1/4 in |
Maximum wire Ø (in) | 1/8 in |
Maximum wire Ø (mm) | 3 mm |
