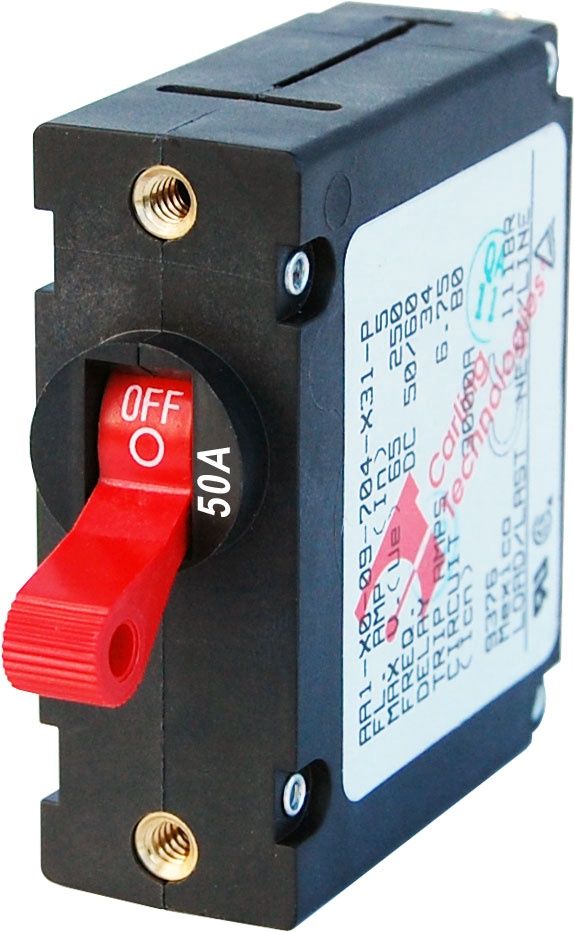

A-Series Red Toggle Circuit Breaker - Single Pole 50A
$39.99
In stock: 1 available
Product Details
UPC: 632085072292
Brand: Blue Sea systems
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems' electrical panels
- Combines switching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
| Specifications | |
|---|---|
| Amperage | 50A AC 50A DC |
| Color | Red |
Actuator Style  |
Toggle |
| Poles | 1 |
| Maximum Voltage | 240V AC 65V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity |
3000A @ 120V AC 1500A @ 240V AC [TUV] 3000A @ 240V AC [UL 1077] 7500A @ 65V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steel |
| Weight | 0.17lb (0.08 kg) |
| Weight | 0.17lb (0.08 kg) |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
A-Series Red Toggle Circuit Breaker - Single Pole 50A
You May Also Like

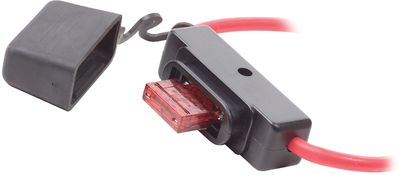

Fuse Holder ATO/ATC Waterproof In-Line 30A
